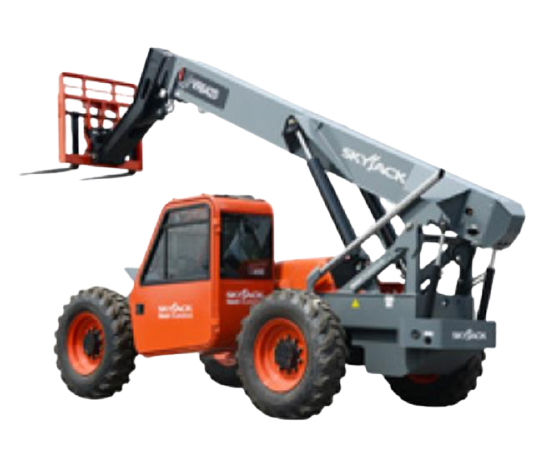

8K 42' Reach Forklift

$455.00
Select Rental Period
Please choose
Rental Start Date
Please choose a date
Will Machine Be Delivered?
Please choose
Notes for Counter Person
Enter your text
In stock
Product Details
  • Maximum Lift Capacity 8,000 lbs (3,629 kg)
  • Maximum Lift Height 43 1 (13.13 m)
  • Rated Lift Capacity @ Maximum Height 6,000 lbs (2,722 kg)
  • Maximum Forward Reach 28 2 (8.59 m)
  • Rated Lift Capacity @ Maximum Reach 1,900 lbs (862 kg)
  • Frame Leveling (degrees) +/- 11
  • O/A Length - Less Forks 21 (6.4 m)
  • Overall Height - Stowed 7 11 (2.41 m)
  • Overall Width 8 6 (2.59 m)
  • Wheelbase 10 8 (3.25 m)
  • Ground Clearance 16 (41 cm)
  • SKYJACK VR843
  • Operating Weight 22,158 lbs (10,072 kg)
  • Turning Radius - Outside 12 3 (7.73 m)
  • Engine Cummins Tier 3 QSB3.3 Turbocharged Diesel
  • HP @ rpm 110hp @ 2400 rpm
  • Max Travel Speed - Forward 17.1 mph (27.5 kmh)
  • Transmission Dana powershift, 3 speeds forward and reverse
  • Axles Dana steerable outboard planetary
  • Service Brakes 4 wheel wet disc
  • Parking Brakes SAHR on rear axle
  • Steering 3 mode (2 wheel, 4 wheel, crab)
  • Tires 13 x 24 14PR grip lug
  • SKYTRAK 8042
  • Breakout Force 25000 lb / 11339.81 kg
  • Drawbar Pull 25000 lb / 11339.81 kg
  • Frame Leveling 10 Degrees
  • Lift Capacity at Full Height 6000 lb / 2721.55 kg
  • Lift Capacity at Max Reach (Stabs Up) 2200 lb / 997.90 kg
  • Load Center 2 ft / 0.61 m
  • Maximum Lift Capacity 8000 lb / 3628.74 kg
  • Maximum Lift Height 41 ft 11 in. / 12.78 m
  • Maximum Reach 26 ft 8 in. / 8.12 m
  • Outriggers or Stabilizers No
  • Outside Turning Radius 13 ft / 3.96 m
  • Speed - Maximum Lift 18 sec.
  • Speed - Maximum Lower 16 sec.
  • Speed - Maximum Telescope In 17 sec.
  • Speed - Maximum Telescope Out 19 sec.
  • Speed - Maximum Travel 20 mph / 32.03 km/h
  • Dimensional Data
  • Ground Clearance 1 ft 5 in. / 0.44 m
  • Machine Height 8 ft 3 in. / 2.52 m
  • Machine Length 18 ft 6 in. / 5.65 m
  • Machine Width 8 ft 3 in. / 2.52 m
  • Tire Size 370/75-28
  • Track Width 7 ft / 2.13 m
  • Wheelbase 10 ft / 3.04 m
