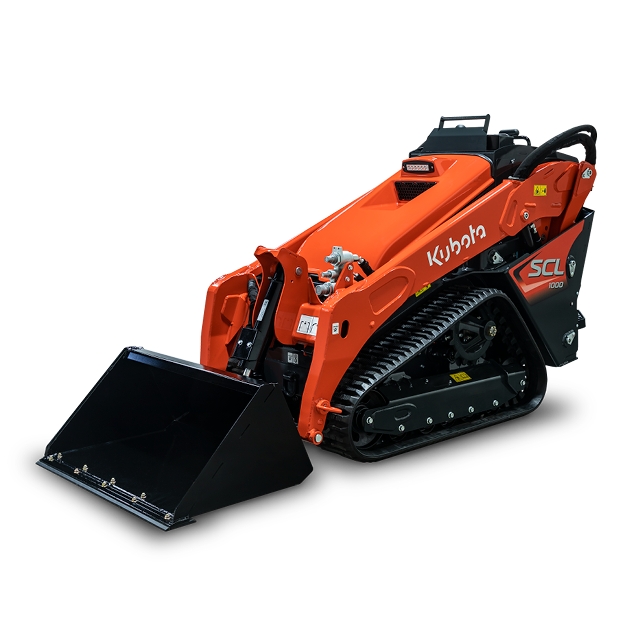

SCL 1000 Kubota

• SCL1000 STAND-ON COMPACT LOADER ENGINE
• Engine Type Water cooled 4 cycle diesel engine with 3 cylinder, turbo, EPA Tier 4
• Total Displacement 54.8 cu.in. (898 cm3)
• Engine Power - SAE J1995 Gross 24.8 HP (18.5 kW/rpm)
• Rated Speed 2800 rpm
• Low Idling Speed 1250 rpm

DIMENSIONS

• Overall Length - Transport (w/Std Bucket Parallel to Ground) 107.7" (2.74 m)
• Overall Length (w/o Bucket) 84.9" (2.16 m)
• Overall Height 55.7" (1.41 m)
• Overall Width w/Std Bucket 36" (91.44 cm)
• Operating Weight (w/o Operator) lbs 3,035 (1,376 kg)
• Rated Operating Capacity (35%) 1,000 lb (453 kg) ROC
• Tipping Load 2,857 lbs (1296 kg)
• Wheelbase 40.5" (1.03 m)
• Hinge Pin Height at Max. Lift 84.7" (2.15 m)
• Reach at Max. Lift and 45° Dump 26" (66 cm)
• Track Width 9.8" (24.9 cm)
• Ground Clearance 7.4" (18.8 cm)
• Angle of Departure 25.2°
• Fuel Tank Capacity 7.75 gal (29.3 L)
• Hydraulic System 6 gal (22.7 L
