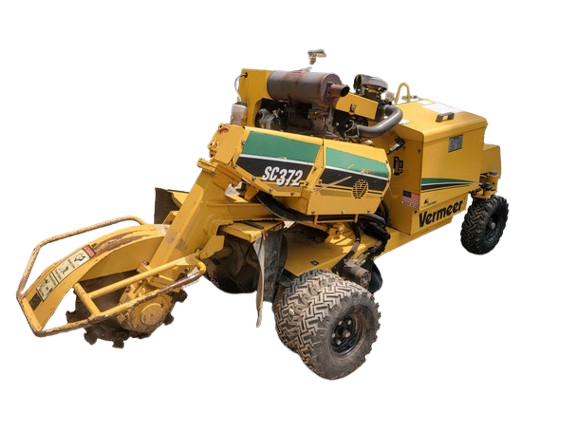

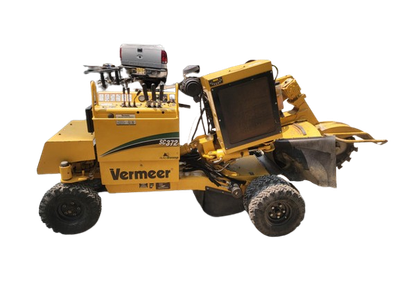

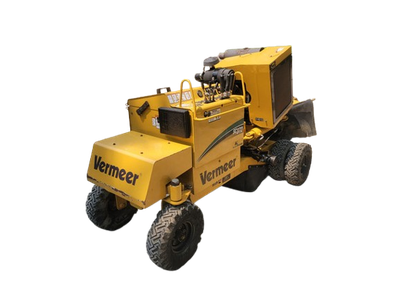

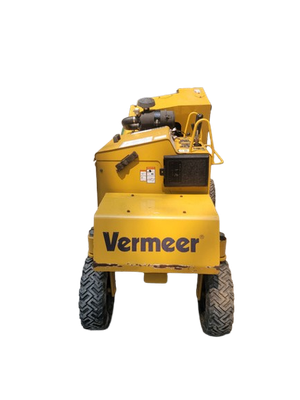

Vermeer SC372 Stump Cutter

The Vermeer SC372 stump cutter is powered by a 37.8 hp diesel engine.

It features a belt-driven gearbox drive system for increased horsepower to the cutter wheel.

The Yellow Jacket cutter system is designed to provide faster, easier serviceability and extended pocket and tooth life

With two-wheel drive and all-wheel drive configurations, as well as an oscillating front steering axle, the SC372 offers improved ground contact for better stability and tractive effort on difficult terrain. A two-speed ground drive allows for faster travel between stumps and a slower controlled creep speed during operation.

General

Weight (diesel engine): 2270 lb (1029.7 kg)

Length: 10.3' (31.1 m)

Width (without duals): 34.8' (88.4 cm)

Width (with duals): 49.5' (125.7 cm)

Height (diesel engine): 55.5' (141 cm)

Engine Options

Make and model: Yanmar 3TNV88-BDVR – Diesel

Gross horsepower: 37.8 hp (28.2 kW)

Max torque: 79.5 ft-lb (107.8 Nm)

Electrical system: 12 V

Fuel-tank capacity: 9 gal (34.1 L)

Hydraulic System

Oil-tank capacity: 6 gal (22.7 L)

Oil type: Vermeer VMF

Cutter Wheel Drive

Wheel diameter (without teeth): 18' (45.7 cm)

Wheel thickness: .5' (1.3 cm)

Drive: Two-stage, Vee-belt and gearbox

Tooth style: Yellow Jacket Cutter System

Tooth quantity: 24

Cutting Dimensions

Above ground level: 21' (53.2 cm)

Below ground level: 16' (40.6 cm)

Width (straight line): 40' (101.6 cm)
